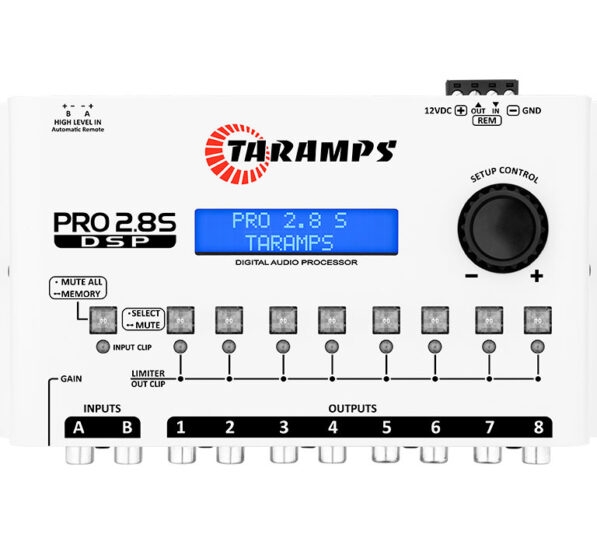

Number of Channels Number of input channels: 2 Number of output channels: 8 Input impedance Input impedance (RCA): 10K ohms Input impedance (WIRED): 50 ohms Output impedance 47 ohms. Maximum input level Maximum input level (RCA): 9VRMS (Min Gain) / 2VRMS – Max Gain. Maximum input level (WIRED): 28Vpp (10V RMS) Maximum output level 5,6Vpp…
Availability: In Stock
| Number of Channels | Number of input channels: 2 Number of output channels: 8 |
|---|---|
| Input impedance | Input impedance (RCA): 10K ohms Input impedance (WIRED): 50 ohms Output impedance 47 ohms. |
| Maximum input level | Maximum input level (RCA): 9VRMS (Min Gain) / 2VRMS – Max Gain. Maximum input level (WIRED): 28Vpp (10V RMS) |
| Maximum output level | 5,6Vpp (2V RMS) |
| Frequency response | (-1dB): 10 Hz to 22 KHz |
| Total Harmonic Distortion | 0,01% |
| Signal to Noise Ratio | >90dB |
| Crosstalk (separation between channels) | >80dB |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Routing | Inputs and outputs: A, B, A+B. |
| General gain | General gain adjustment: -80 to 0dB. |
| Output gain | Output gain adjustment: -45 to +15dB. |
| Input Equalizer | STANDARD mode only: Graphic input equalizer, 15 bands, 2/3 octave and 12 presets: Frequencias 25,40,63,100,160,250,400,630,1K,1.6K,2.5K,4K,6.3K,10K,16KHz Gain attenuation: -12dB to + 12dB |
| central frequency | Variable from 10Hz to 22KHz |
| Attenuation – Gain | -12dB to + 12dB |
| Q factor | 0,4 to 10 |
| Frequency range | Variable from 10 Hz to 22KHz |
| Gain | -60 a 0dB |
| Languages | Portuguese, English and Spanish |
| Dimensions (W x H x D) | 7.80″ x 1.46″ x 4.45″ (198 x 37 x 113 mm) |
| Weight | 0.99 Ib (0.45 Kg) |
