CRX 4

Description

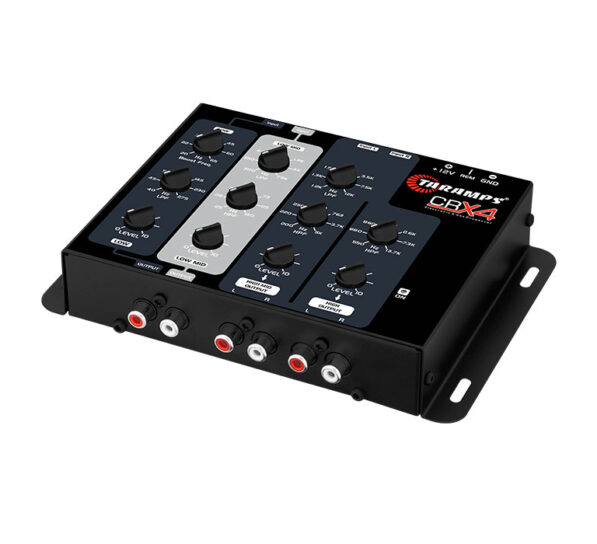

CRX 4

4 Way Electronic Crossover

Number of Ways: 04

Low Via (Mono):
Variable from 40 Hz to 275Hz (-12dB/Oct)
Cutoff Frequency (LPF): Central frequency 20 variable to 65 Hz
Bass Boost: (Fixed gain 6dB)

Mid-Low Via (Mono)
Minimum Frequency (corte HPF): Variable 25Hz to 140Hz (-12dB/Oct)
Maximum Frequency (corte LPF): Variable 300Hz to 7.5kHz (-12dB/Oct)

Mid-High Via (Stereo)
Minimum Frequency (corte HPF): Variable 200Hz to 4.6kHz (-12dB/Oct)
Maximum Frequency (corte LPF): Variable 1.2kHz to 12kHz (-12dB/Oct)

High Via (Stereo)
Cutoff frequency: Variable 550Hz to 12kHz (-12dB/Oct)

Input Impedance: 27K OHMS
Output Impedance: 470 OHMS
Maximum Input Level: 8V RMS
Maximum Output Level: 8V RMS
Crosstalk (separation between channels): >80dB
Supply voltage: 10 to 15.5V DC
Nominal Consumption: 380mA
Protection: Against polarity reversal
Power Supply: DC-DC Converter With Key

Dimensions (WxHxD): 190 x 42 x 145mm
Weight: 0.56Kg
