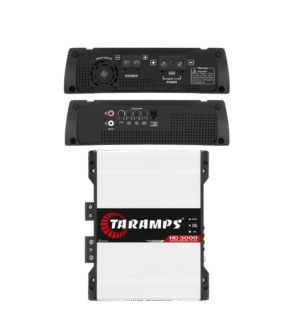

Bass Line Amplifier,

Class D,

30000 Watts RMS


Categories: ,


Operation class Class D
Number of Channels 01
Maximum power @ 14,4 VDC – 1 OHM: 30000 W RMS
@ 14,4 VDC – 2 OHMS: 17010 W RMS
Input Sensitivity 400mV
Signal to Noise Ratio >90dB
Frequency Response (-3dB) 8Hz to 250Hz
Crossover high pass (HPF) Variable, 8 to 30Hz (-12dB/8ª)
Crossover low pass (LPF) Variable, 60 to 250Hz (-12dB/8ª)
Bass Boost Parametric, (35 to 60Hz) 0 to +12dB
Efficiency 90%
Input Impedance 22K Ohms
Protection system Output Short / Short on output relative to GND / High and Low Power Supply and Thermal protection
Min. Supply Voltage 9VDC
Maximum Power Supply Voltage 17VDC
Consumption at rest 400mA
Maximum music consumption 1156A
Maximum consumption in sinusoidal signal 2312A
Dimensions (H x W x D) mm 9.37″ x 2.79″ x 41.10″
Weight 42.24lb
