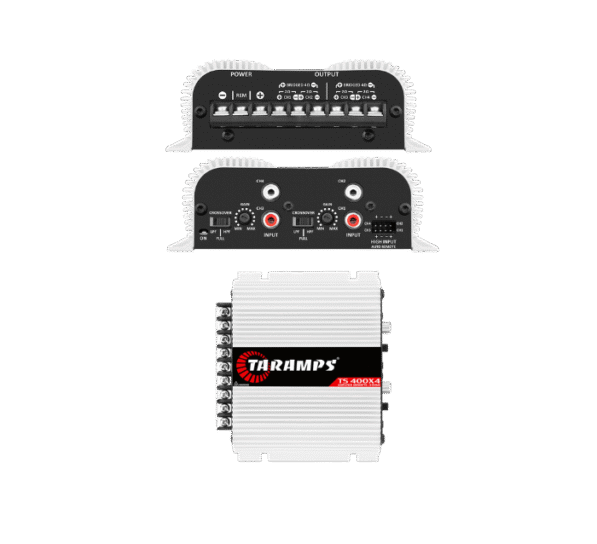

TS 400X4
TS Line Amplifier,
Class D,
Brand: Taramps
Description
| NUMBER OF CHANNELS | 4 |
| MAXIMUM POWER | @ 13,8 VDC – 2 OHMS – 400 W RMS (4 x 100W RMS) |
| @ 13,8 VDC – 4 OHMS – 252 W RMS (4 x 63W RMS) | |
| Bridge @ 13,8 VDC – 4 OHMS – 400W RMS (2 x 200W RMS) | |
| INPUT SENSITIVITY | 200mV (Vol = max.) |
| SIGNAL TO NOISE RATIO | > 90dB |
| FREQUENCY RESPONSE | (Full Range): 18 Hz to 30 kHz (-1dB) |
| CROSSOVER HIGH PASS (HPF) | 90 Hz (-12dB/8th) |
| CROSSOVER LOW PASS (LPF) | 90 Hz (-12dB/8th) |
| INPUT IMPEDANCE | 22K ohms |
| OUTPUT IMPEDANCE | 2 ohms |
| PROTECTION SYSTEM | Thermal and Output Short |
| MIN. SUPPLY VOLTAGE | 8 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16 VDC |
| CONSUMPTION AT REST | 0.8A |
| MAXIMUM MUSIC CONSUMPTION | @13,8VDC: 16.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | @13,8VDC: 33A |
| DIMENSIONS (WXHXD) | 5.433 x 1.929 x 4.763 inches (138 x 49 x 121 mm) |
| WEIGHT | 1.322 lbs (0.6 kg) |
