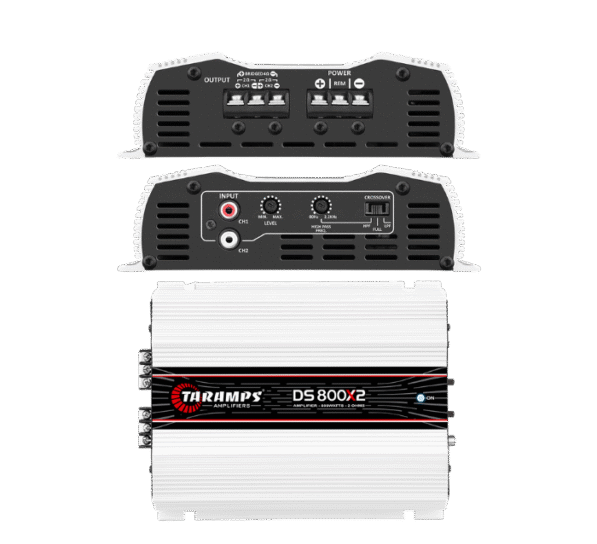

DS 800X2
Bass Line Amplifier,
Class D,
800 Watts RMS
Brand: Taramps
Description
NUMBER OF CHANNELS 02
MAXIMUM POWER @ 12.6 VDC – 2 OHMS: 800WRMS (2 x 400WRMS)
| NUMBER OF CHANNELS | 2 |
| MAXIMUM POWER | @ 12.6 VDC – 2 OHMS: 800WRMS (2 x 400WRMS) |
| @ 12.6 VDC – 4 OHMS: 500WRMS (2 x 250WRMS) | |
| @ 12.6 VDC – 8 OHMS: 240WRMS (2 x 120W) | |
| 1 Bridgeable CHANNELS: @12.6 VDC – 4 OHMS: 800WRMS (1 x 800WRMS) | |
| INPUT SENSITIVITY | 250mV |
| SIGNAL TO NOISE RATIO | >96dB |
| FREQUENCY RESPONSE | 10Hz to 22KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 80Hz to 2.2KHz (-6dB/8a) Variable |
| CROSSOVER LOW PASS (LPF) | 80Hz (-12dB/8ª) Fixed |
| EFFICIENCY | 83% |
| INPUT IMPEDANCE | 18K Ohms |
| OUTPUT IMPEDANCE | 2 Ohms |
| PROTECTION SYSTEM | output overload |
| MIN. SUPPLY VOLTAGE | 9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16VDC |
| CONSUMPTION AT REST | @12.6 VDC: 0.85A |
| MAXIMUM MUSIC CONSUMPTION | @12.6 VDC: 38A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | 77A |
| DIMENSIONS (WXHXD) | 7.24″ x 2.13″ x 7.48″ (173 x 52 x 227mm) |
| WEIGHT | 3.04lb (1,43kg) |
